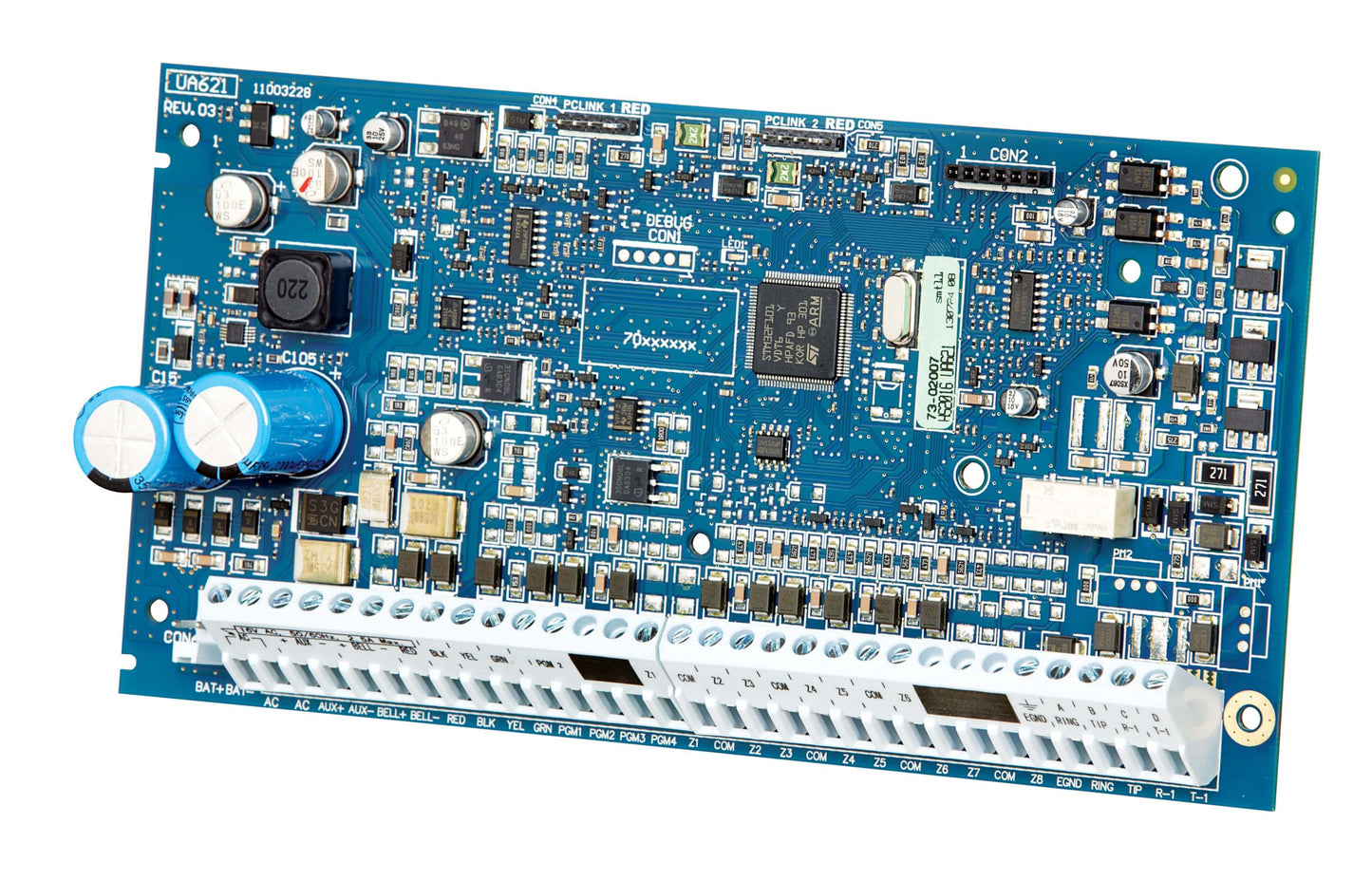

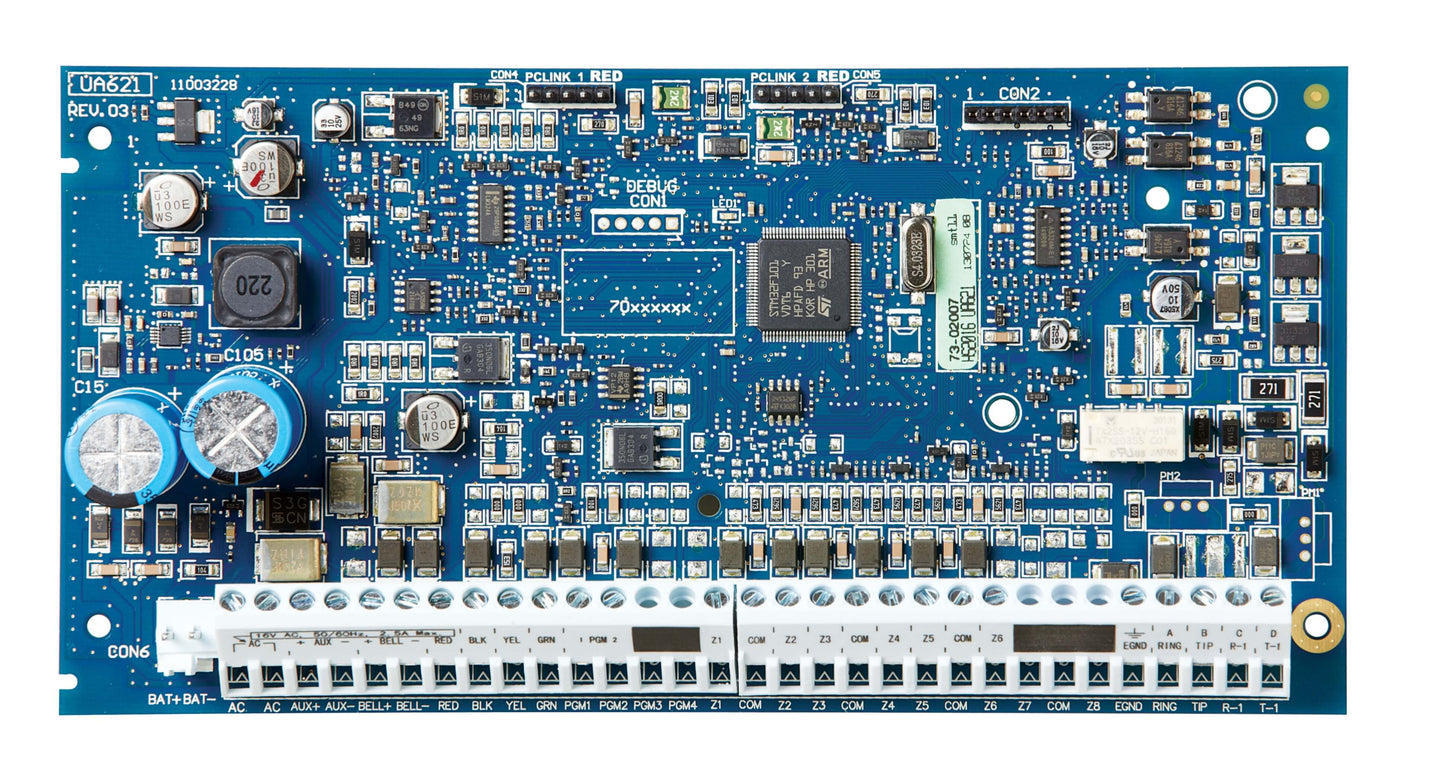

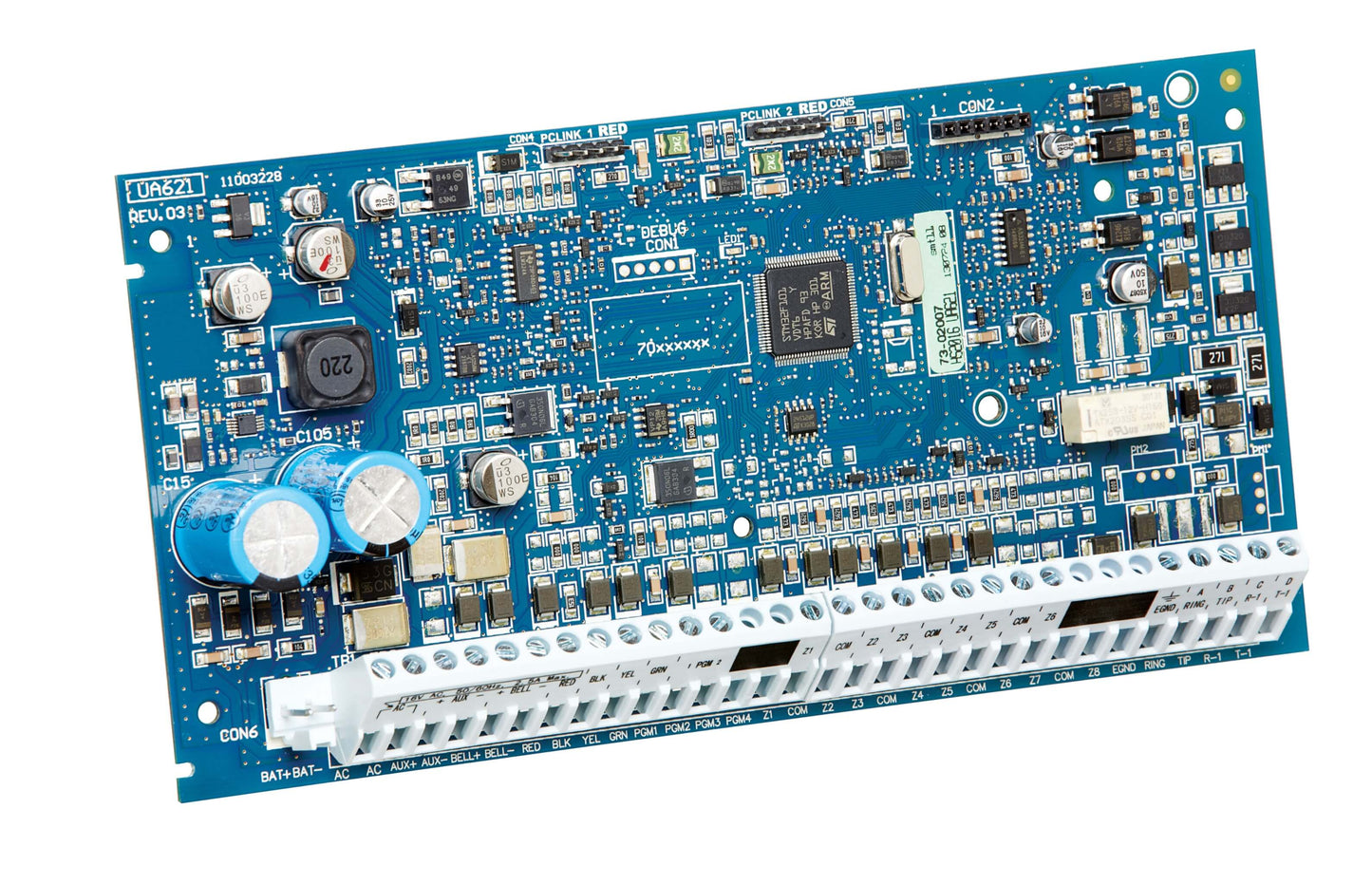

Neo 16 Zone Hybrid Control Panel - HS2016 Control Panel with Enclosure

The DSC PowerSeries Neo Hybrid Control Panel - HS2016 is a modern security solution that offers up to 16 wireless and hardwired zones plus 8 on-board zones. The panel also features 2 partitions, 500-event buffer, 48 user codes, and 2 PGM outputs expandable to 22. Plus, the interconnect smoke detector support helps provide early warning in life-threatening situations.

HS2016 Key Features:

•  8 on-board zones
• Expandable to 16 wireless and hardwired zones
• 2 PGM outputs: expandable to 22 (HSM2204, HSM2208)
• Template programming
• Connect up to 8 supervised keypads with keypad zones
• 2 partitions
• 500-event buffer
• 48 user codes
• Supports PowerG

HS2016 Downloads:

• HS2016 Installation Guide
• HS2016 User manual
