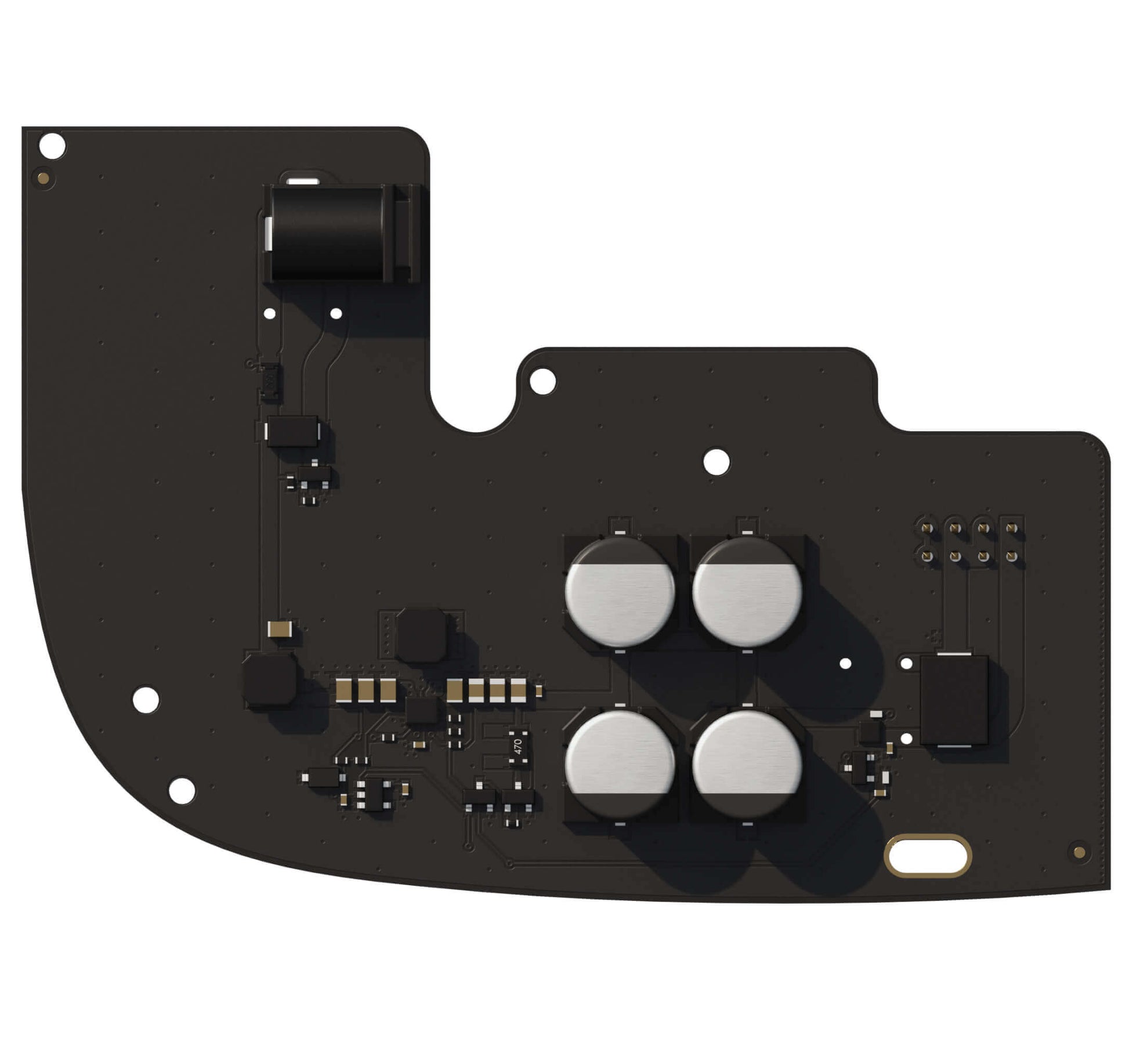

Ajax 6V PSU - Uninterrupted Power for Hub 2 & Hub 2 Plus

The alternative backup power supply for Ajax 6V PSU for Hub 2 and Hub 2 Plus

Operate your system from an external 12V 8AH Battery for extended power outages, even when they have lost power from grid.

6V-12VDC Power Supply Module Key Features:

• Compatibility: Hub 2 and Hub 2 Plus
• Input voltage: 4.2-16 V DC
• Output voltage: 4.8 V DC ± 5%
• Switch on voltage: 4.2 V DC ± 2.5%
• Switch off voltage: 3-3.4 V (depending on load)
• Max input current: 2,2 А on 4,2 V; 0,5 А on 16V
• Max output current: 1,5 A
• Temperature range: from -10°C to +40°С
• Humidity: Up to 75%
• Connection to mains: Socket: 6.5 × 2 mm Plug: 5.5 × 2,1 mm
• Dimensions: 98 × 70 × 17 mm"

6V-12VDC PSU for Hub 2 & Hub 2 Plus Downloads:

• User Manuals
